Plasma Edge II - TT02B Build Kit - With Options (58630)

Plasma Edge II - TT02B Build Kit - With Options (58630)

58630

£139.00

PayPal Heading

Bundle Option

Qty

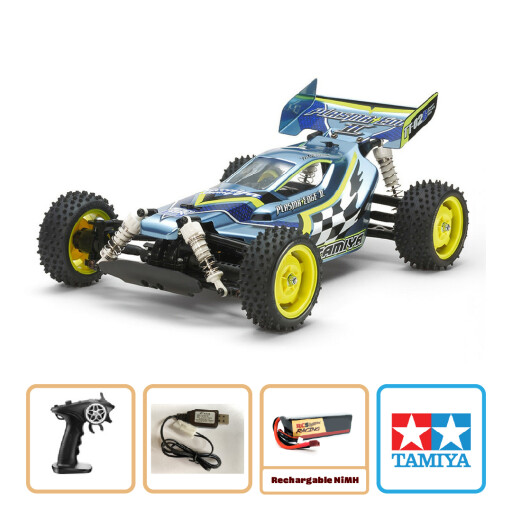

This kit is supplied in 2 formats. The default is 'model only' with no radio control or battery included. The second is a full bundle, which includes radio gear and all batteries - The full bundle option needs nothing else!

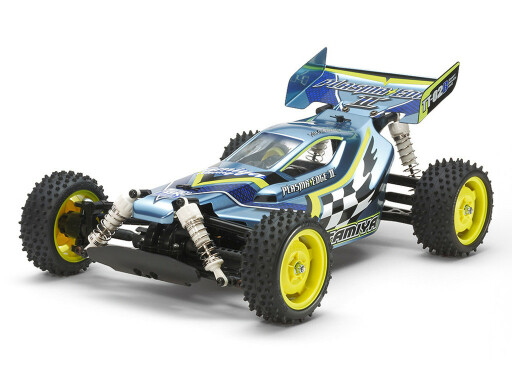

This exciting shaft-driven 4WD R/C buggy assembly kit creates the Plasma Edge II, and includes stylish polycarbonate body and rear wing parts. Marking stickers add to the racy mood of the model, as do fluorescent yellow star dish wheels and white CVA oil shocks. The TT-02B is a dedicated off-road buggy chassis that offers hassle-free assembly and maintenance, as well as superb controllability.

Shaft-Driven 4WD and Superior Handling from the TT-02B

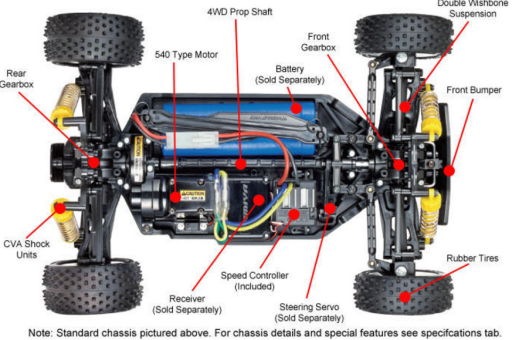

The shaft-driven 4WD TT-02B buggy chassis employs a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus white CVA oil shock units, giving the car assured handling, while left/right suspension arms and uprights are identical to facilitate hassle-free assembly. Front/rear gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside. The top can be removed simply by loosening a few screws, making maintenance a breeze. Four different gear ratios can be applied with the use of three separately-sold types of pinion gear, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.

About the Model

Length: 370mm, Width: 250mm, Height: 160mm
Wheelbase: 266mm
Tread: 217mm (Front), 208mm (Rear)
Bathtub-type Chassis Frame
Shaft-Driven 4WD
Front/Rear 4-Bevel Differentials
3-Piece Steering Tie-Rod
4-Wheel Double Wishbone Suspension
Tyre Width/Diameter: 32/82mm (Front), 41/82mm (Rear) (Square Spike Tyres)
CVA Oil Shock Units
Gear Ratio＝10.71：1 (with kit-included pinion gear)
Type 540 Motor
ESC is included

Please note - The bodyshell supplied with the Hornet is prepainted. (a full set of decals are included).

This kit is supplied as a complete set with all radio gear, servos, and suitable NiMH recharageable battery. It even comes with batteries for the Controller..

If you gave this as a Christmas or Birthday present, you would need nothing else to Complete it (except normal modelling tools, Screwdriver, Modelling knife etc)

You may like to paint the body shell though. It is supplied as a clear shell, with decals. The painting can be as complex as you wish, but the pictures above show this model simply painted in black with decals applied

This model is not supplied with a battery or with any RC radio equipment, which you will need to use the model This is so you can choose your peferred radio gear and battery type based on your budget and preference

You will also need some paint for the supplied clear body shell. The pictures show simple blue has been used and then decorated with the supplied decals.
