Tamiya RC Brushless Conversion kit Complete for 1/10 vehicles + Battery UK

286555964758

£89.99

PayPal Heading

Qty
Pimp your Tamiya's Ride. This kit will give you a much higher top speed and super quick acceleration while running for longer with the Lipo Battery (up to 45 minutes!)

This is a complete kit for converting an existing Tamiya brushed 1/10 scale vehicle, fitted with a 540 motor, to a completely brushless setup. The kit includes everthing you will need including a long lasting high power Tamiya shaped (rounded) 4000mAh Lipo battery, ESC, and Brushless Motor. It even includes a charger for the Lipo battery.
If you are new to Brushless Technology and would like to know what the numbers mean, please refer to my free guide to understanding Brushless Motors, available on my website, (dot com) in the downloads section



Features:
1. 4 poles 12 slots high torque motor design.
2. High purity copper windings for maximum efficiency.
3. Precision design for maximum energy (BHP) conversion.
4. Precision balanced rotor for ultra smooth running, and maximum RPM
5. ESC Multiple Protection: Low voltage cut-off protection, over-heat protection, throttle signal loss protection.
6. Built-in 5.8V / 3A BEC.
7. Suitable for Tamiya 1/10 scale RC Car / Truck / Buggy. (example list below)
8. This is a high quality item, and is fully recyclable.

Motor Specification:
Condition: 100% Brand New
Material: ABS, Copper
Color: Blue
Applicable Product: for 1/10 Scale RC Car
Waterproof : Yes
Watts: 900W
Maximum Voltage: < 15V
Maximum Amps: 62A
KV (RPM / Volt): 3100KV
Maximum RPM: 50000
Diameter: 36mm / 1.42inch
Length: 50mm / 1.97inch
Shaft Length: 15mm / 0.59inch
Shaft Diameter: 3.175mm / 0.125inch
Plug Type: 4mm Gold Banana Plug

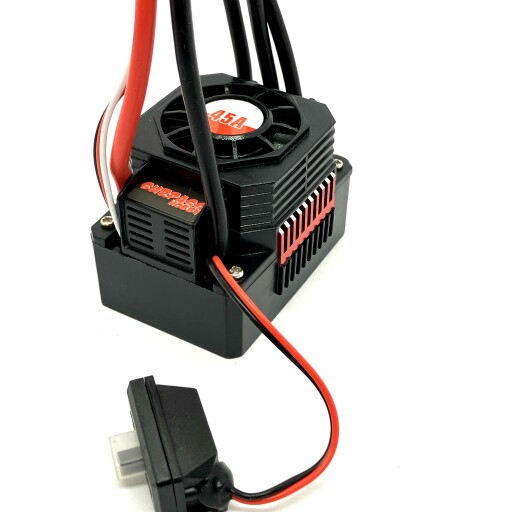

ESC (Electronic Speed Controller) Specification:
Waterproof: Yes
Constant Current: 45A
Burst Current: 320A
Battery required: 2-3S Li-Po / 4-9S Ni-MH / Ni-Cd
BEC Output: 5.8V / 3A
Power Supply Plug: Deans Red T Plug Male
Motor Plug: 4mm Banana Plug Female
Size: 50*35*34mm/2*1.4*1.3in (Not Including Cable Length)

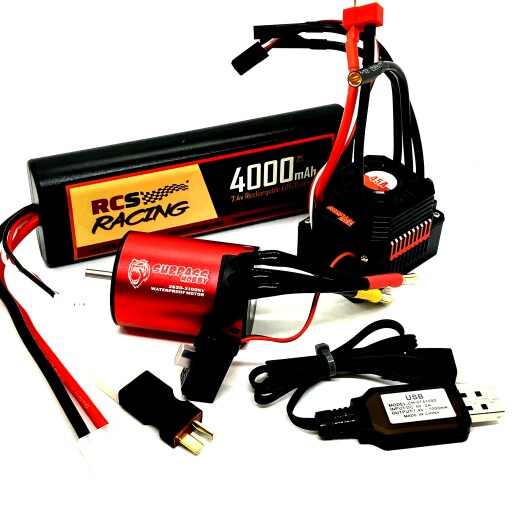

Package List:

1 x 3650-3100KV Motor

1 x 45Amp Waterproof Programmable ESC

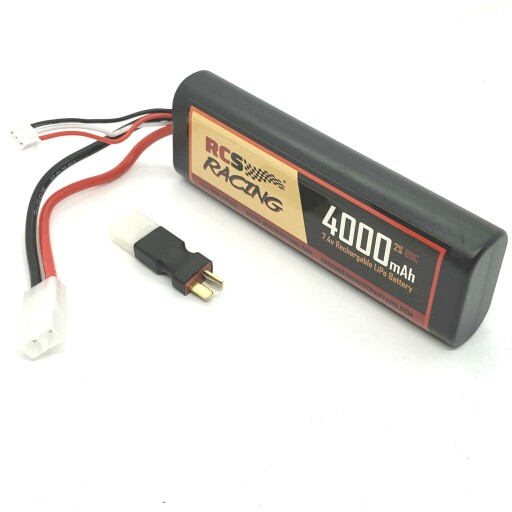

1 x 4000mAh RCScrapyard 7.4V Lipo battery

1 x Battery Adaptor (Tamiya to Deans Red)

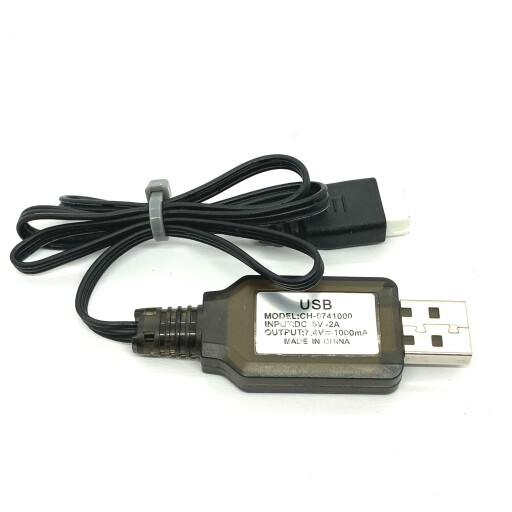

1 x Lipo Battery Charger

1 x ESC Manual



This kit is compatible with all Tamiya 1/10 scale vehiles that use a 540 motor. An example list is below. There are many more models this fits, but too many to list. If you are in doubt, please ask

Lunch Box

Blitzer Beetle

All DF and DT series Chassis

All BB series Chassis

All TT-01 Chassis

All TT-02 Chassis

All M series Chassis

All MF seris Chassis

all CC Series Chassis

Hornet and all 2WD Buggies

Grasshopper

Midnight Pumpkin

And Many more older models no listed

*Note - If you would like a faster, Intelligent battery charger for the Lipo battery, which will prolong the life of the battery, please see ebay item number 284309715874 for the RCScrpayard fully intelligent multi operational battery charger, which is highly recomended for Lipo batteries. It is not possble to charge a Lipo battery with a standard Nicad or NiMih battery charger.
