RC Brushless 60A ESC 3650 kit for 1/10 Models + 2x 7.4V 2S batteries + Charger + FREE Lipo safe bag

RC Brushless 60A ESC 3650 kit for 1/10 Models + 2x 7.4V 2S batteries + Charger + FREE Lipo safe bag

285267364313

£99.00

PayPal Heading

Qty

description

Outstanding Value - This kit contains everything you need to convert a brushed vehicle or a Nitro Vehicle to a super fast Brushless model. The kit contains a fully waterproof brushless motor, fully waterproof brushless ESC, Two (yes two!) 2s 7.4 volt 6000mAh batteries, and to finish off, a fully intelligent battery charger is also included.

Two batteries will give you a run time of approx 90 minutes (depending on driving conditions) and each battery will take approx 1 hour to charge.

This is a complete kit for converting an existing brushed 1/10 scale vehicle, fitted with a 540 motor, to a completely brushless setup. The kit includes everthing you will need including a long lasting high power 6000mAh Lipo batteries, ESC, and Brushless Motor. It even includes a fully intelligent balance charger for the Lipo batteries.

If you are new to Brushless Technology and would like to know what the motor numbers mean, please refer to my free guide to understanding Brushless Motors, available on my website, rcscrapyard.com and look in the support section

Features:
1. 4 poles 12 slots high torque motor design.
2. High purity copper windings for maximum efficiency.
3. Precision design for maximum energy (BHP) conversion.
4. Precision balanced rotor for ultra smooth running, and maximum RPM
5. ESC Multiple Protection: Low voltage cut-off protection, over-heat protection, throttle signal loss protection.
6. Built-in 5.8V / 3A BEC.
7. Suitable for 1/10 scale RC Car / Truck / Buggy.
8. This is a high quality item, and is fully recyclable.

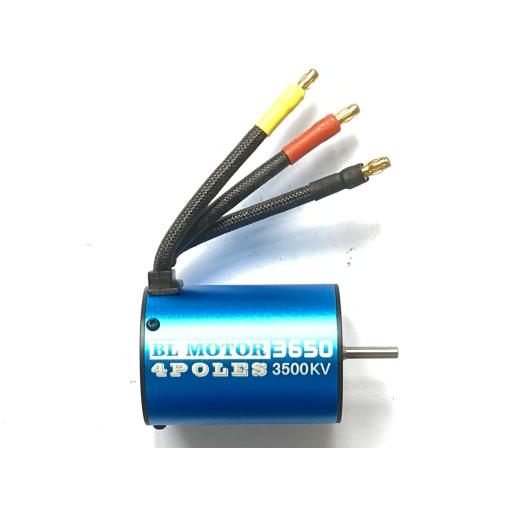

Motor Specification:
Condition: 100% Brand New
Material: ABS, Copper
Color: Blue
Applicable Product: for 1/10 Scale RC Car
Waterproof : Yes
Watts: 900W
Maximum Voltage: < 15V
Maximum Amps: 62A
KV (RPM / Volt): 3650KV
Maximum RPM: 60000
Diameter: 36mm / 1.42inch
Length: 50mm / 1.97inch
Shaft Length: 15mm / 0.59inch
Shaft Diameter: 3.175mm / 0.125inch
Plug Type: 4mm Gold Banana Plug

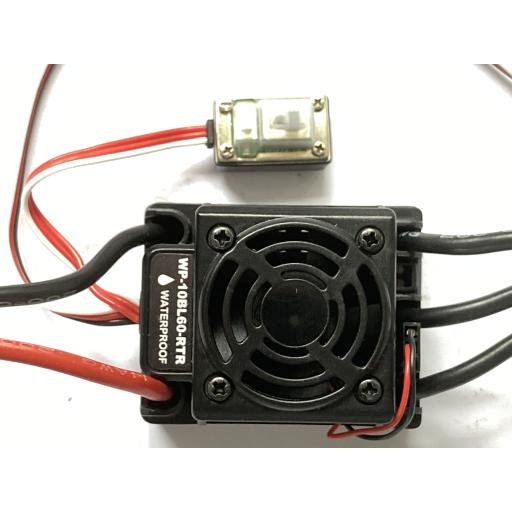

ESC (Electronic Speed Controller) Specification:
Waterproof: Yes
Constant Current: 60A
Burst Current: 320A
Battery required: 2-3S Li-Po / 4-9S Ni-MH / Ni-Cd
BEC Output: 5.8V / 3A
Power Supply Plug: Deans Red T Plug Male
Motor Plug: 4mm Banana Plug Female
Size: 50*35*34mm/2*1.4*1.3in (Not Including Cable Length)

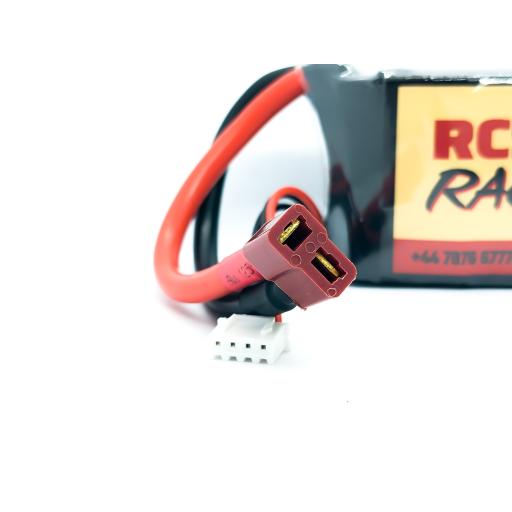

Battery Specification:

7.4v Lipo 6000mAh RC Rechargeable Car Truck Buggy Battery with a T Style Red Power Connector

This is a High power Sport rated Battery Power Pack which has been assembled to high standards using premium quality high drain cells, heavy duty conductor leads and plugs with nickel plated pins.

Size 135 x 46 x 23 mm - Weight 400gms

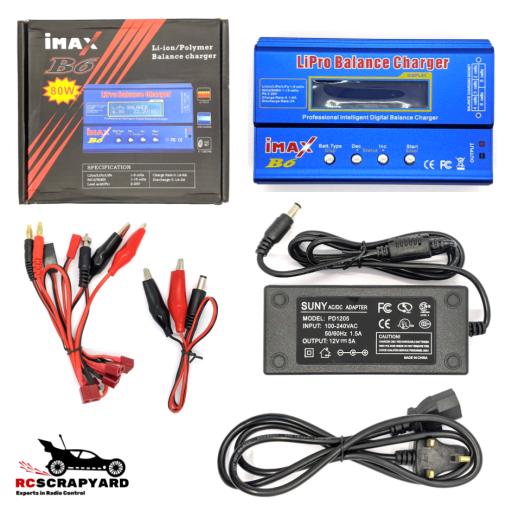

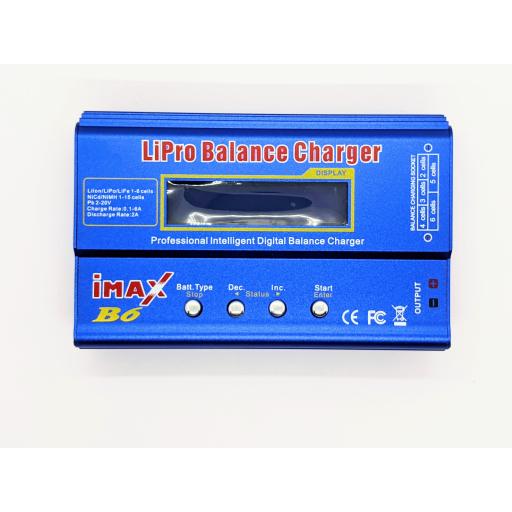

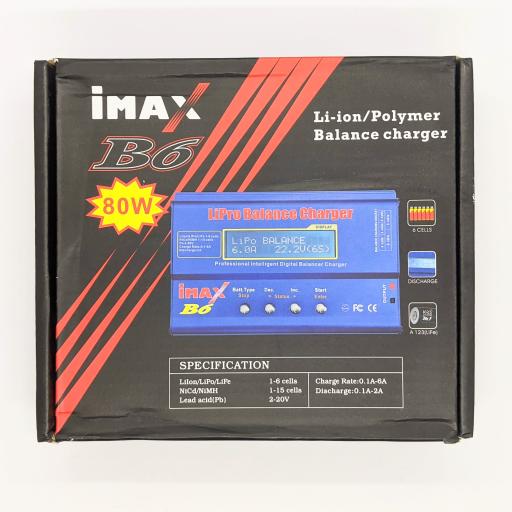

Intelligent Charger Specification:

This is a highly intelligent microprocessor controlled battery charger / discharger/suitable for all types of rechargeable batteries. it comes complete with a full set of charging leads, and a UK power supply and UK Plug.

Features:

*Microprocessor controlled Delta-peak sensitivity.

*Individual cell balancing Li-ion, LiPo and LiFe capable Ni-Cd and NiMH capable

*Large range of charge currents Store function, allows safe storage current

*Time limit function

*Input voltage monitoring. (Protects car batteries at the field)

*Data storage (Store up to 5 packs in memory)

*Battery break in and cycling.

*Support new generation 123 system (LiFe) battery

Specifications:

* Operating voltage range: DC11.0-18.0 Volt / AC to DC adaptor(DC11.0-18.0V/5A)

* Circuit power: Max.charge power 80W / Max.discharge power 5W Charge Current Range: .1~5.0A

* Discharge current range: 0.1-1.0A

* Current drain for balancing Li-po: 300mAH/cell

* LiIon/LiPo/LiFe cells : 1-6

* NiCd/NiMH cells : 1-15

* Pb battery voltage: 2~20v

* Unit Package Gross Weight: 580g

* Dimensions: 133x87x33mm Compare to iMAX B5:

* Can charge 6 cells LiPo battery (B5 can charge maximum 5 cells)

* With Discharge Function

* 123 Life Charging

Package List:

1 x 3650-3500KV Motor

1 x 60Amp Waterproof Programmable ESC

2 x 6000mAh RCScrapyard 7.4V 50C Lipo battery

1 x intelligent Lipo Battery Charger iMaax B6 AC 80W

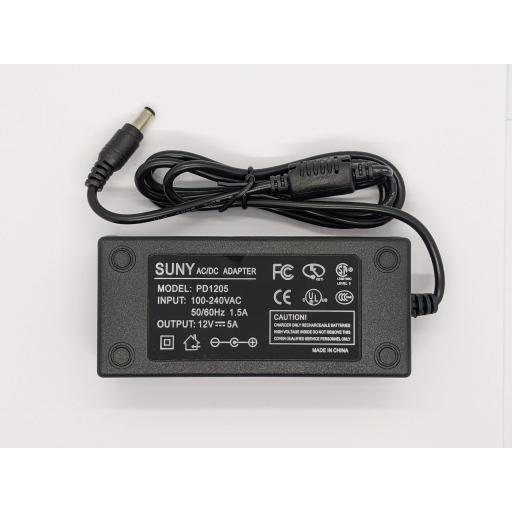

1 x UK Power Supply for Charger

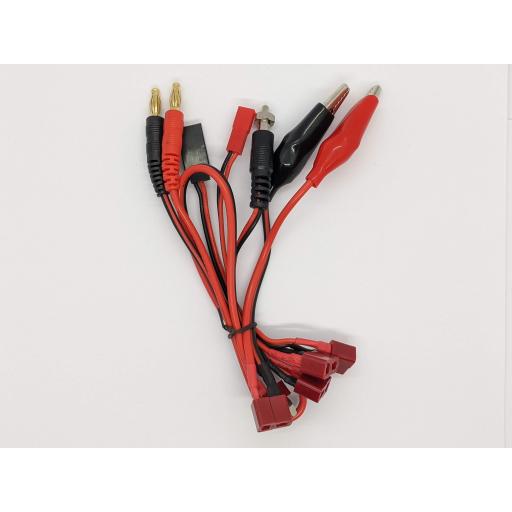

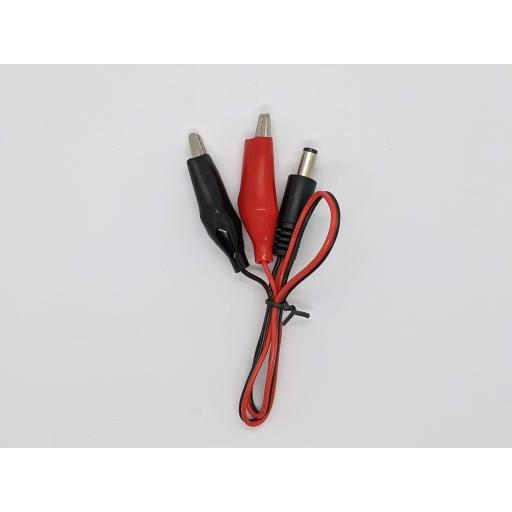

1 x Complete set of charging cables for all rechargeable batteries.

1 x set of Manuals

Note :- If you are converting a Nitro vehicle to Brushless you will also need a motor mount, and pinion. These tend to be specific to the model of car so are not inclided in this kit.
