Brushless 60A ESC + 3650 3500KV Motor Conversion kit for 1/10 Vehicles Universal Fit + Lipo Battery

Brushless 60A ESC + 3650 3500KV Motor Conversion kit for 1/10 Vehicles Universal Fit + Lipo Battery

284405216186

£89.99

PayPal Heading

Qty

This is a complete kit for converting an existing brushed 1/10 scale vehicle, fitted with a 540 motor, to a completely brushless setup. The kit includes everthing you will need including a long lasting high power 6000mAh battery, ESC, and a 3650 (540 size) 3500KV Brushless Motor. The kit even includes a charger for the battery

If you are new to Brushless motors, and would like to understand what the numbers mean, please refer to my free guide to Brushless Motors, available in the downloads section of this web site.

Features:
1. 4 poles 12 slots high torque motor design.
2. High purity copper windings for maximum efficiency.
3. Precision design for maximum energy (BHP) conversion.
4. Precision balanced rotor for ultra smooth running, and maximum RPM
5. ESC Multiple Protection: Low voltage cut-off protection, over-heat protection, throttle signal loss protection.
6. Built-in 5.8V / 3A BEC.
7. Suitable for 1/10 scale RC Car / Truck / Buggy.
8. This is a high quality item, and is fully recyclable.

Motor Specification:
Condition: 100% Brand New
Material: ABS, Copper
Color: Blue
Applicable Product: for 1/10 Scale RC Car
Waterproof : Yes
Watts: 900W
Maximum Voltage: < 15V
Maximum Amps: 62A
KV (RPM / Volt): 3500KV
Maximum RPM: 50000

Diameter: 36mm / 1.42inch
Length: 50mm / 1.97inch
Shaft Length: 15mm / 0.59inch
Shaft Diameter: 3.175mm / 0.125inch
Plug Type: 4mm Gold Banana Plug

ESC (Electronic Speed Controller) Specification:
Waterproof: Yes
Constant Current: 60A
Burst Current: 320A
Battery: 2-3S Li-Po / 4-9S Ni-MH / Ni-Cd
BEC Output: 5.8V / 3A

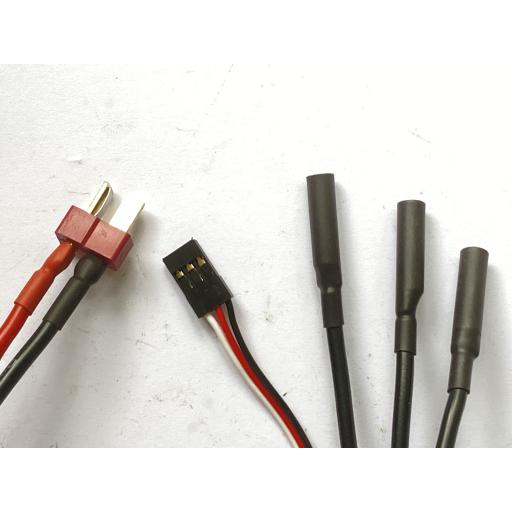

Power Supply Plug: T Plug Male
Motor Plug: 4mm Banana Plug Female
Size: 50*35*34mm/2*1.4*1.3in (Without cable)

Package List:

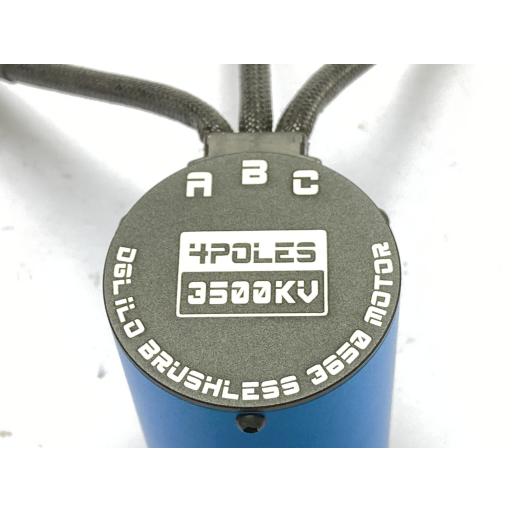

1 x 3650-3500KV Motor

1 x 60Amp Waterproof Programmable ESC

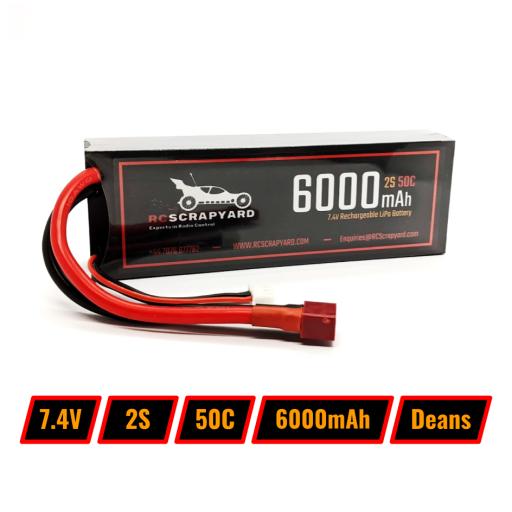

1 x 6000mAh RCScrapyard 7.4V Lipo battery

1 x USB Lipo Battery Charger

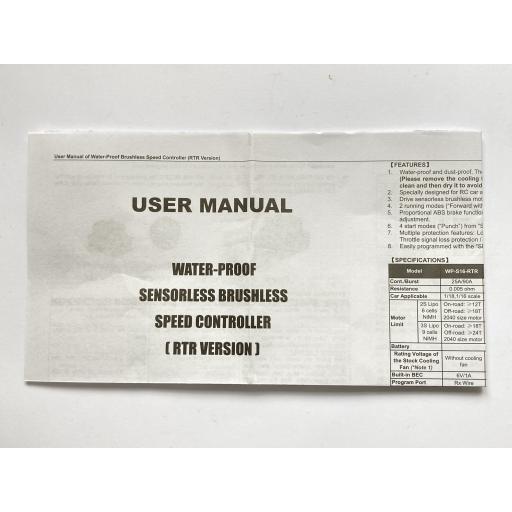

1 x ESC Manual

*Note - If you also require a battery charger for the Lipo battery, please search for item number 284309715874 (using the search bar above) for the RCScrpayard fully intelligent multi operational battery charger, which is highly recomended for Lipo batteries. It is not possble to charge a Lipo battery with a standard Nicad or NiMih battery charger.
